【1.13-1.15】MotionIt - 原版算Motion (含UI操作) - 数据包

⭐✔️

本帖最后由 SHEEP_REALMS 于 2021-10-16 10:03 编辑

Github
本项目开源，用于展示相关命令：
https://github.com/tremblestarman/datapacks/tree/master/MotionIt

版权相关
用到了Bio-Hazard的公式
原帖链接：https://www.bilibili.com/read/cv1342860
（有点回忆起了四年前我制作的渣Motion计算器，并非基于两点坐标和时间运算，反而关注的是速率和夹角，现在看来实用性太低了）

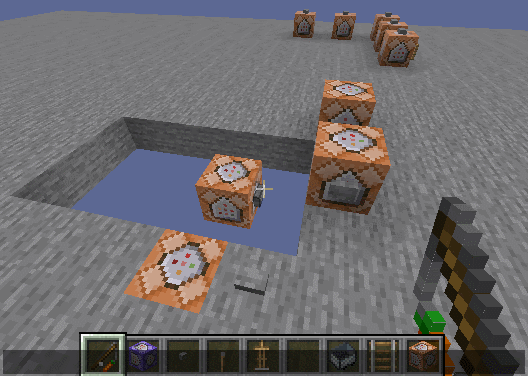

效果（3张1~2M的gif）

利用两点坐标计算Motion

矿车
掉落沙
掉落沙

（对于其他实体因为最大速度以及其他限制，理论与实际有所偏差）

使用方法

命令操作
1. # set target position (0.500, 8.000, 6.500)
2. # the value is rounded to three decimal places.
3. scoreboard players set @x tx 500
4. scoreboard players set @x ty 8000
5. scoreboard players set @x tz 6500
6. # set time (ticks)
7. scoreboard players set @x t 40
复制代码
设定tx、ty、tz为终点坐标（保留三位小数），设定t为运动时间（刻数）。
1. execute as @x run function motionit:calculate
复制代码
接下来执行运算函数。
1. execute as @x run function motionit:go
复制代码
再执行赋值函数运行。

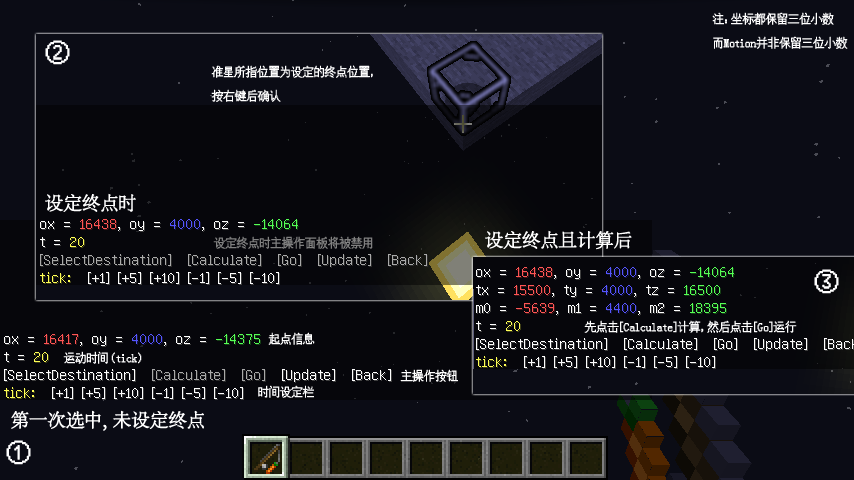

UI操作
1. function motionit:ui/reset
复制代码

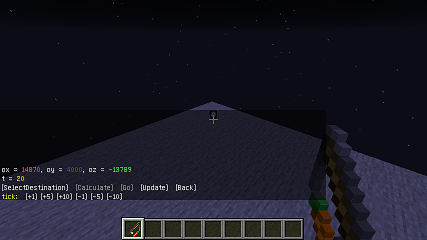

获取"EntitySelector"，右键选择实体，然后聊天栏点击操作。

原理

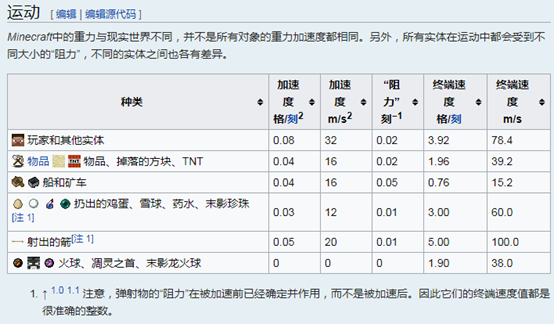

其实主要原理就在下面三张图中：

py脚本如下：

原理上来讲很容易实现，所以本数据包主要内容体现在如何让计算保持一定精度，尤其是仅运用储存上限为2147483647的计分板运算

变量储存规则
介绍变量规则，以免一会儿大家看混淆
主要分为两类，常量和变量：
常量如物理常量'g'和'f'，以及常数-1、0、1、10……储存在计分板"con"中；
变量主要是过程量'a'、'b'、'c'等等就不列举了。
三维变量中ox、oy、oz和tx、ty、tz还有m0、m1、m2因为与实体NBT存储有关，另开了计分板。

第一步：获取物理常量（motionit:getparam）
原理是穷举，用到了实体标签：
例如tags/entity_types/mincart.json

穷举的命令则是：

这里的'g'和'f'我们用一位整数替代两位小数。

第二步：获取1-(1-f)^t （motionit:pow/x）
原来想法是递归运算pow()，因为舍的位数太多，结果是运行不超过十次必得到0，因此舍弃了（仍保留在数据包中，函数为oppow.mcfunction和oppowc.mcfunction，毕竟方法是正确的）。
后来果断穷举了，因为f的值是恒定的常数，所以分为0、1、2、5四种情况穷举，脚本如下：

第三步：计算坐标差（motionit:relativeswitch、motionit:relativeconfirm）
motionit:relativeswitch：

# distance rounding
execute store result score x1 var run data get entity @s Pos[0] 1000
execute store result score y1 var run data get entity @s Pos[1] 1000
execute store result score z1 var run data get entity @s Pos[2] 1000
scoreboard players operation @s m0 = @s tx
scoreboard players operation @s m1 = @s ty
scoreboard players operation @s m2 = @s tz
scoreboard players operation x2 var = @s tx
scoreboard players operation y2 var = @s ty
scoreboard players operation z2 var = @s tz
scoreboard players operation x2 var -= x1 var
scoreboard players operation y2 var -= y1 var
scoreboard players operation z2 var -= z1 var
scoreboard players operation x2 var /= 1000 con
scoreboard players operation y2 var /= 1000 con
scoreboard players operation z2 var /= 1000 con
scoreboard players operation x3 var = x2 var
scoreboard players operation y3 var = y2 var
scoreboard players operation z3 var = z2 var
execute if score x2 var < 0 con run scoreboard players operation x2 var *= neg con
execute if score y2 var < 0 con run scoreboard players operation y2 var *= neg con
execute if score z2 var < 0 con run scoreboard players operation z2 var *= neg con
# flexibly standardize decimal place format
# calculate relatively to improve accuracy
execute if score x2 var >= 10000 con run scoreboard players operation @s m0 = x3 var
execute if score x2 var >= 1000 con if score x2 var < 10000 con run execute store result score x1 var run data get entity @s Pos[0] 10
execute if score x2 var >= 1000 con if score x2 var < 10000 con run scoreboard players operation @s m0 /= 100 con
execute if score x2 var >= 100 con if score x2 var < 1000 con run execute store result score x1 var run data get entity @s Pos[0] 100
execute if score x2 var >= 100 con if score x2 var < 1000 con run scoreboard players operation @s m0 /= 10 con
execute if score x2 var >= 10 con if score x2 var < 100 con run execute store result score x1 var run data get entity @s Pos[0] 1000
execute if score x2 var >= 1 con if score x2 var < 10 con run execute store result score x1 var run data get entity @s Pos[0] 10000
execute if score x2 var >= 1 con if score x2 var < 10 con run scoreboard players operation @s m0 *= 10 con
execute if score x2 var < 1 con run execute store result score x1 var run data get entity @s Pos[0] 100000
execute if score x2 var < 1 con run scoreboard players operation @s m0 *= 100 con
execute if score y2 var >= 10000 con run scoreboard players operation @s m1 = y3 var
execute if score y2 var >= 1000 con if score y2 var < 10000 con run execute store result score y1 var run data get entity @s Pos[1] 10
execute if score y2 var >= 1000 con if score y2 var < 10000 con run scoreboard players operation @s m1 /= 100 con
execute if score y2 var >= 100 con if score y2 var < 1000 con run execute store result score y1 var run data get entity @s Pos[1] 100
execute if score y2 var >= 100 con if score y2 var < 1000 con run scoreboard players operation @s m1 /= 10 con
execute if score y2 var >= 10 con if score y2 var < 100 con run execute store result score y1 var run data get entity @s Pos[1] 1000
execute if score y2 var >= 1 con if score y2 var < 10 con run execute store result score y1 var run data get entity @s Pos[1] 10000
execute if score y2 var >= 1 con if score y2 var < 10 con run scoreboard players operation @s m1 *= 10 con
execute if score y2 var < 1 con run execute store result score y1 var run data get entity @s Pos[1] 100000
execute if score y2 var < 1 con run scoreboard players operation @s m1 *= 100 con
execute if score z2 var >= 10000 con run scoreboard players operation @s m2 = z3 var
execute if score z2 var >= 1000 con if score z2 var < 10000 con run execute store result score z1 var run data get entity @s Pos[2] 10
execute if score z2 var >= 1000 con if score z2 var < 10000 con run scoreboard players operation @s m2 /= 100 con
execute if score z2 var >= 100 con if score z2 var < 1000 con run execute store result score z1 var run data get entity @s Pos[2] 100
execute if score z2 var >= 100 con if score z2 var < 1000 con run scoreboard players operation @s m2 /= 10 con
execute if score z2 var >= 10 con if score z2 var < 100 con run execute store result score z1 var run data get entity @s Pos[2] 1000
execute if score z2 var >= 1 con if score z2 var < 10 con run execute store result score z1 var run data get entity @s Pos[2] 10000
execute if score z2 var >= 1 con if score z2 var < 10 con run scoreboard players operation @s m2 *= 10 con
execute if score z2 var < 1 con run execute store result score z1 var run data get entity @s Pos[2] 100000
execute if score z2 var < 1 con run scoreboard players operation @s m2 *= 100 con
# get difference
scoreboard players operation @s m0 -= x1 var
scoreboard players operation @s m1 -= y1 var
scoreboard players operation @s m2 -= z1 var
#tellraw @a ["",{"text":"x2 = "},{"score":{"name":"x2","objective":"var"},"color":"red"},{"text":", y2 = "},{"score":{"name":"y2","objective":"var"},"color":"blue"},{"text":", z2 = "},{"score":{"name":"z2","objective":"var"},"color":"green"}]
#tellraw @a ["",{"text":"m0 = "},{"score":{"name":"@s","objective":"m0"},"color":"red"},{"text":", m1 = "},{"score":{"name":"@s","objective":"m1"},"color":"blue"},{"text":", m2 = "},{"score":{"name":"@s","objective":"m2"},"color":"green"}]

复制代码

先计算整数位的差值，根据差值的大小动态保留差值的位数，将差值限定到5位数（y=0是个特例）
motionit:relativeconfirm：

上标签，表示保留多少位，以便于后续的赋值处理。

水平方向（motionit:opx、motionit:opz）
以opx为例：

可以说就是把图中公式用四则运算表示了一遍。

竖直方向（motionit:opy）

除了表示公式外，还要协调位数，所以竖直方向处理更特殊，这边我就不解释怎么协调得了，看看就行。

总流程（motionit:calculate）

把上面一套流程按顺序走了一遍，计算所得的Motion用(m0,m1,m2)表示。

赋值（motionit:go）

还原位数，然后赋值给Motion。
这里涉及到失重，原因是为了修复一个莫名其妙的动量亏损。也就是说重力状态下，通过命令修改的Motion值会在第二刻突然减弱，而初始化生成实体时设定的Motion不受影响。

UI
UI的具体细节就不讲了，射线等老技术自己翻翻源码也就明白了。
